2021 Mercedes Sprinter 4×4 Ü-van

2021 Custom 4-Season Sprinter 144 4×4 – Luxury, Off-Grid, Off-Road Ready.
This is not a mass-produced van. It’s a meticulously built, true 4-season custom Sprinter with a high-end, marine-grade interior and serious off-grid capability. Designed to feel luxurious while remaining extremely capable off road.

Exterior:
Van Compass 4.3 suspension
Owl Vans B2 bike carrier + 1Up tray
Owl Vans ladder & tire carrier
Bull bar front bumper with shackles
Baja (2) LP6 lights
Winch 12,000 lbs w/ wireless remote and synthetic rope
Rugged roof rack w/ wind deflector and Ü-Vans painted and cleared logo
Three 100w solar panels
Wide running boards
XD series black rims w/ all terrain tires
Lower carriage protective paint w/ incorporated Ü-Vans logo
Side extension flare (2) w/ matching protective paint

Passenger side:
Electric awning, fully automatic w/ wireless remote (legless)
110V outlet w/ USB ports (weather and element protected)
Flush valve for gray water tank (weather and element protected)
Storage for gray water hose and access to sump pump box
LED bar w/ touch panel dimmer (inside)
Stainless steel step riser w/ Ü-Vans recessed logo

Driver side:
30 AMP power inlet
LED bar w/ touch panel dimmer (inside)

Rear:
LED bar (2) w/ touch panel dimmer (inside)
Trailer hitch and plug (5000 lbs capacity)
Fresh water fill up connection (weather and element protected)
Exterior shower with handheld shower head (weather and element protected)
Access to toilet cassette (weather and element protected)
Fold down shelf and storage
Cargo net storage (2)
Garage area (37 cu ft) covered in auto liner upholstery
w/ full extension pull out tray (48” x 29”)
Fresh water visual gauge in addition to interior analog gauge
AC/DC switches and breakers
Easy access and visual to all electronic components (Solar charger, inverter, DC-DC
converter, fuse blocks, etc)
110V outlet Lighting with switch

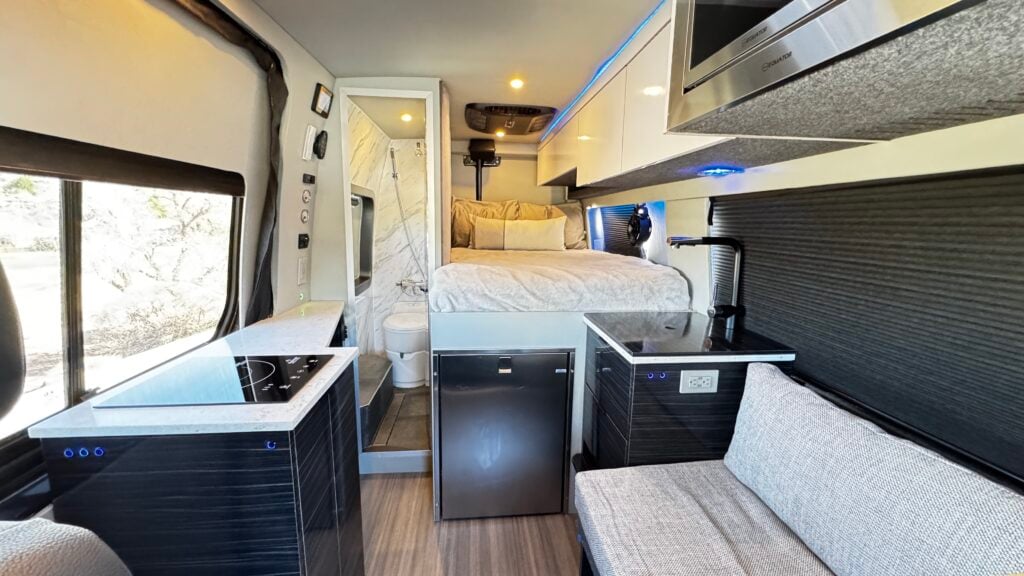

Living area:
32 inch Samsung smart frame TV
Audio receiver 160W home stereo w/ Bluetooth capability and USB drive
Speakers (2) Boss 3 way 200w
Sub woofer 6.5 inch deep bass

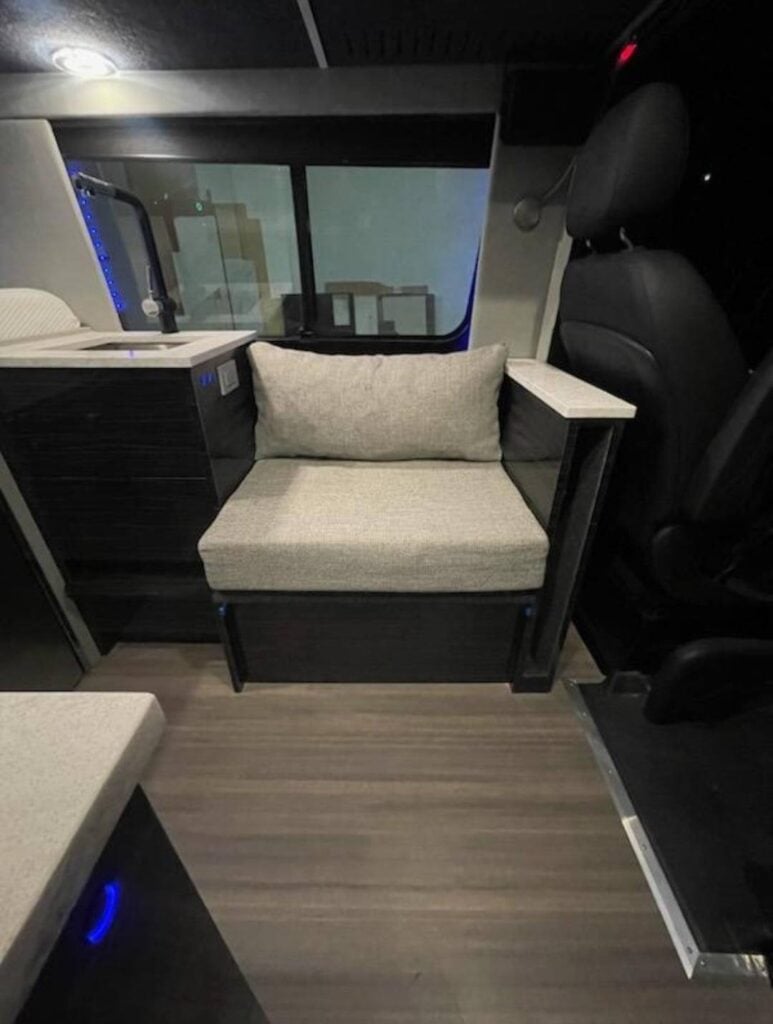

Sofa 30” x 24” that converts to 30” x 48” lounge chair
Multicolored LED strip accent lighting w/ illuminated switch
Folding table storage w/ solid top (2.5” x 30” x 24”) Table optional.
Huge 56” x 28” enclosed storage area
Large side window w/ slide opening glass and bug screen
Roller blackout window shade
110V outlet

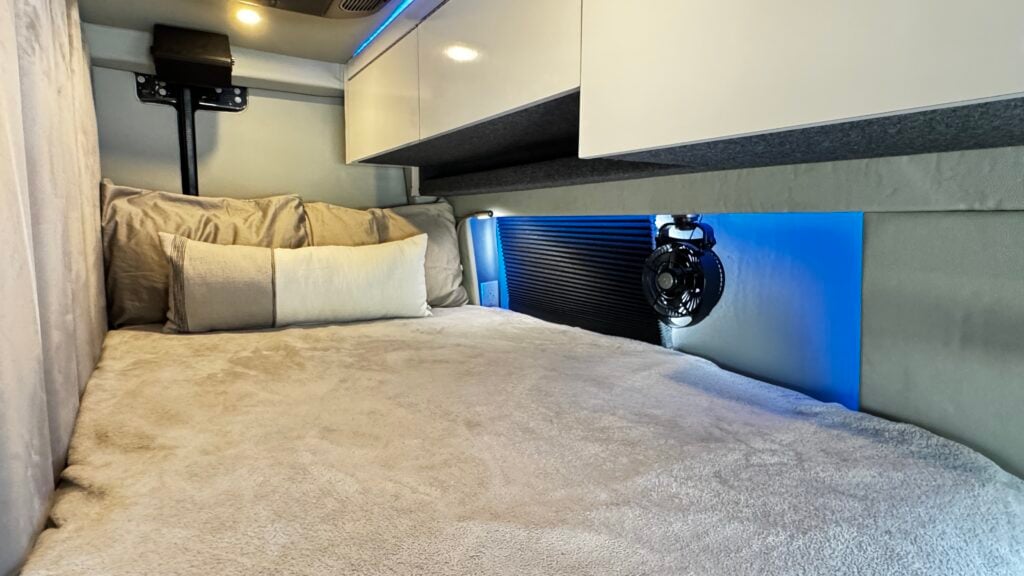

Sleeping area
Bed 74” x 45” w/ 6 inch Ultima memory foam
Dimmable flexible reading lamp /w USB outlet
Bora 3 speed low consumption fan
Shelve storage for phone, wallet, keys, etc
Large overhead storage w/ 2 high gloss flip up doors
Accent suede bed wall
EZ access bed step
Recessed LED (2) lights w/ 3 way illuminated switch from bed
Arctic tern window w/ two opening positions
Roller blackout window shade
110V outlet w/ USB outlets

Bathroom and shower (55” x 27”):
Ceramic wall hung sink w/ hot and cold water faucet
Thermostatic shower mixer w/ handheld shower head
Thetford electric flush toilet w/ swivel seat
Porcelain tile floor w/ incorporated flush linear drain
Side flare for extra elbow room and shower niche
Laminated walls
High gloss laminated door w/ privacy lock handle
Shower sump pump w/ on/off/auto switch
LED recessed light w/ illuminated wall switch
Arctic tern window w/ two opening positions
Roller blackout window shade
110V GFCI outlet

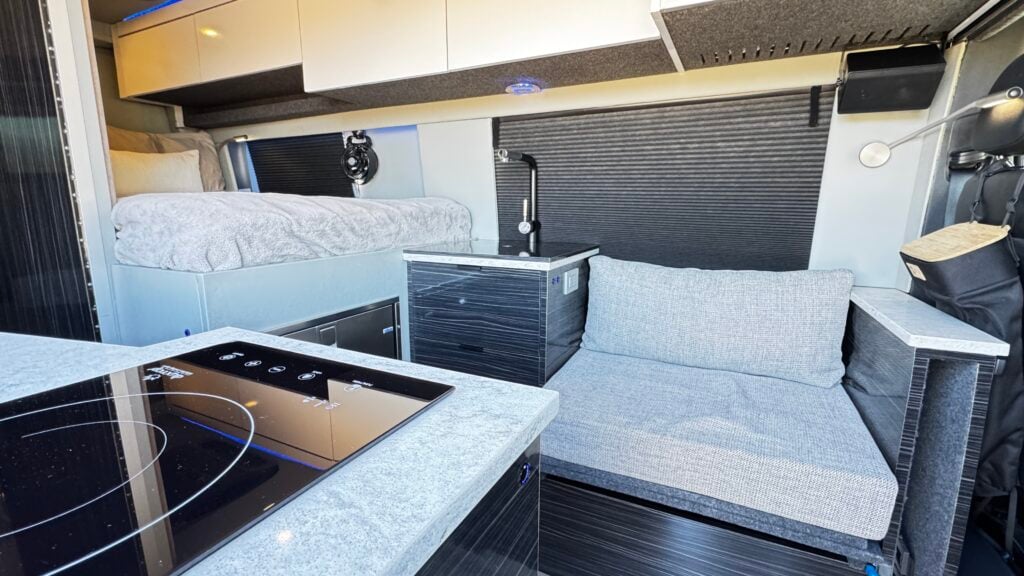

Galley:
Solid surface counter top
Stainless steel drawer refrigerator with freezer compartment, low consumption DC, 2.3 cu ft
Convection oven and microwave combo 0.8 cu ft 900W
One burner induction cooktop
Deep under mount stainless steel sink w/ cover
Pull down kitchen faucet, matte black and chrome w/ hot and cold water
Dedicated over sink LED light w/ illuminated wall switch
Tilt out drawer under sink
Pots and pan drawer
Large overhead storage 48”x12” w/ 2 high gloss flip up doors
Pantry w/ two soft close doors and two shelves
Open multi purpose bar and accommodation area w/ high gloss finish and shelve
FanTastic vent w/ variable speed fan, automatic dome lift, thermostat, rain sensor, remote &
reverse
Large side window w/ slide opening glass and bug screen
Roller blackout window shade
LED recessed light w/ illuminated wall switch
110V outlet w/ USB outlets

Specs & numbers:
Volta power system including;
13.5kwh lithium battery pack
3,200W inverter
300W Solar panels
Auxiliary alternator charging up to 9,200W
Hot water heater, electric and from engine heat exchanger. 6 gallon capacity
Fresh water tank 24 gallon capacity
Gray water tank 20 gallon capacity
Black water reservoir 4.75 gallon (cassette w/ carrying wheels and handle)
Insulation of roof, walls and floor; combination of foam boards and 3M Thinsulate
Air conditioner 13,000 BTU
Diesel fed 7,000 BTU heater w/ wall mount controller
Faux leather wall and ceiling upholstery
One piece laminate floor covering
Cabinets built with 100% plywood (no mdf, no melamine, no particulate board)
Overhead height 74.25”
Fresh and gray water illuminated analog gauge
TV remote
Awning remote
Vent remote

This van is not your typical camper. It’s designed for those who demand comfort, capability, and full off-grid independence. Whether you’re heading into the backcountry or exploring remote landscapes, this custom 4-season Sprinter 144 4×4 will take you there!
